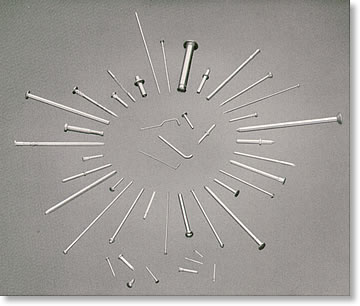

Pins

HIGH TECHNOLOGY ELECTRONIC AND WIRE WRAPPING PINS

Astro has a uniquely developed process called THERMAL SPLITTING, in which we electronically separate round or square wire to form smooth concentric tips on each end. This method allows our pins to have a lower insertion force when being assembled or coupled to a mating connector.

PRODUCT SPECIFICATIONS

•	Standard wire ranges: round or square wire
•	Diameter from 0.010" to 0.050" (0.25mm to 1.27mm)
•	Length from 0.150" to 3.00" (3.8mm to 76.2mm)
•	Standard wire materials: Brass, phosphor, bronze, copper, beryllium copper and other alloys upon request.
